Description

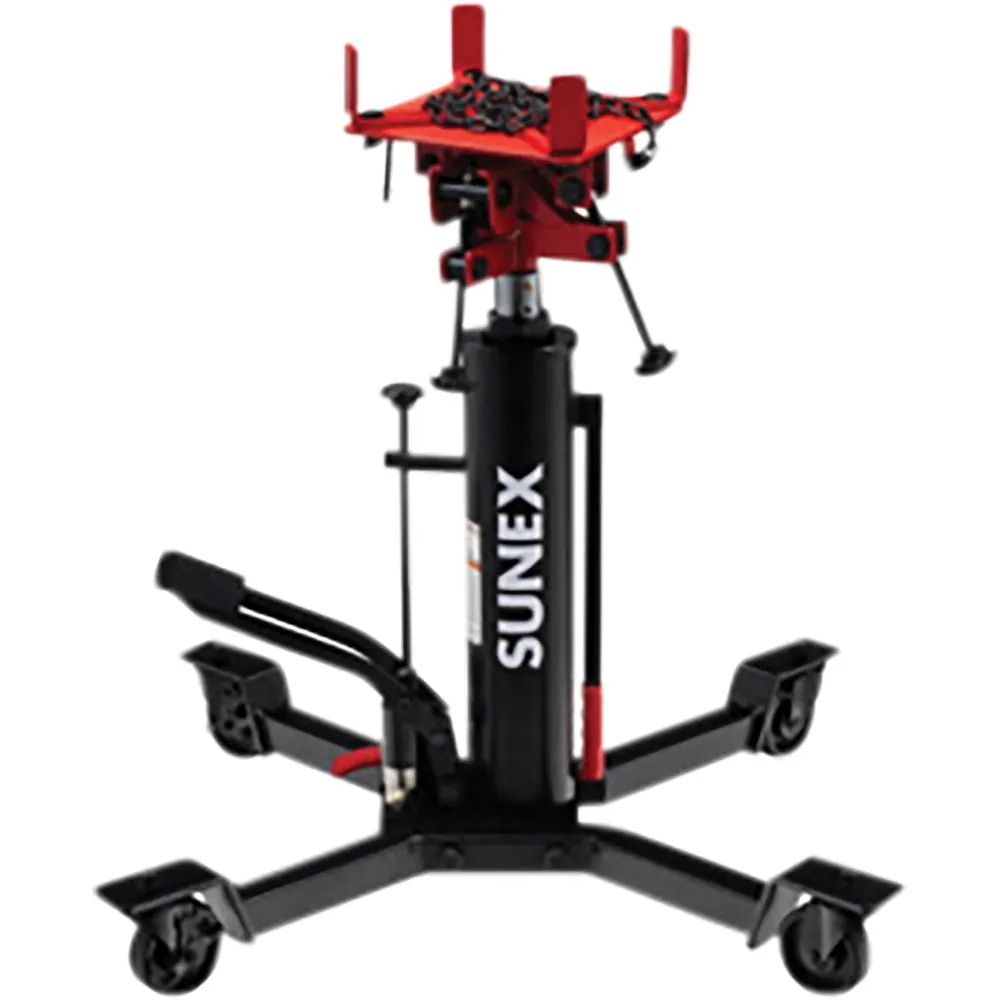

1000 lb. (1/2 Ton) Telescopic Transmission Jack

1000 LB. (1/2 TON) TELESCOPIC TRANSMISSION JACK

1000 Lb. (1/2 Ton) Telescopic Transmission Jack

FEATURES:
• Telescopic two-stage hydraulics for greater lift range, precise load control and rapid lift
• Wide base with four 3″ swivel caster wheels
• Low height: 35″
• High height: 75-1/2″
• Use for removal, installation and transporting of transmissions and transfer cases on vehicles that are supported by lifts
• Foot activated pump pedal allows hands free raising of the transmission while foot activated release pedal allows hands free lowering
• 35.5 low height allow easy transfer of transmission to work table and 74 max height reaches vehicle undercarriage while on lift
• Foot pedal release lowers the load at the normal rate of speed while additional release knob provides slow, controlled lowering of the load for hands-free applications
• Universal saddle with angle brackets can be adjusted to any transmission pan configuration
• Chain tie down safely secures transmission to the saddle
• Overload valve prevents jack from being used beyond its rated capacity
• Wide base legs with swivel caster, polyurethane tread wheels provide stability and easy maneuverability even under load
• Includes 2 locking casters to safely lock jack and transmission in place 1000 lb. (1/2 ton) telescopic transmission jack item : suu-7793b

WARRANTY: See Manufacturer for warranty information

PROP 65 WARNING: WARNING: This product can expose you to chemicals including NICKEL (METALLIC), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

WEIGHT: 167.0 lbs
DIMENSIONS: L: 38.5 x W: 26.0 x H: 13.5

MANUFACTURER: SUNEX TOOLS
UPC: 613364061794
ITEM: SUU-7793B
