Description

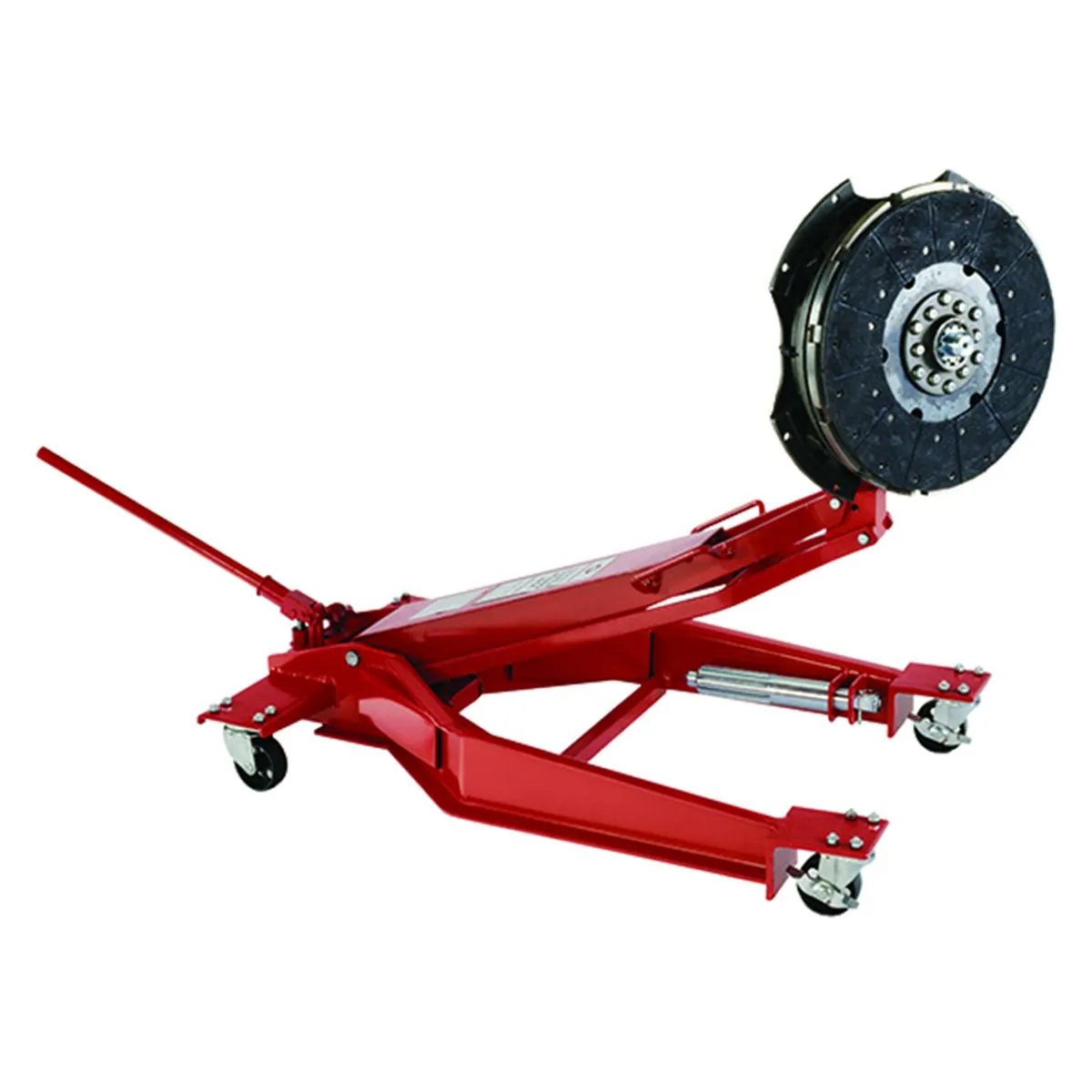

300LB CLUTCH & FLYWHEEL HANDLE

300Lb Clutch & Flywheel Handle

FEATURES:
• Clutch head assembly turns 360? and pivots side-to-side for efficient clutch/engine alignment. two splined alignment shafts (2″ od x 1.18″ pilot and 1-3/4″ od x .938″ pilot).
• Clutch assemblies can easily be built on the vertical shaft and then positioned easily under the truck.
• Pump handle rotates 360? for ease of operation in virtually any work position.
• Unique clevis pinned alignment shaft allows technician to remove jack to install clutch assembly without obstruction.
• Alignment shafts have “flats” for open end wrench to aid in clutch indexing and internally threaded for slide hammer removal if needed.
• Capacity: 500 lbs. min: 13″ max: 39″ frame: 36 1/2″ x 22″ ship weight: 138 lbs.
• A highly efficient design that provides the technician with capabilities to remove, install and transport heavy duty truck clutches. this heavy duty unit has a greater capacity than most competitive units and has the added versatility of being able to convert the optional adapters for fly wheels, drive shafts, starter motors, auxiliary cases, differentials, brake drums and camel back springs.
• Clutch head assembly turns 360? and pivots side-to-side for efficient clutch/engine alignment. two splined alignment shafts (2 od x 1.18 pilot and 1-3/4 od x .938 pilot).
• Clutch assemblies can easily be built on the vertical shaft and then positioned easily under the truck.
• Pump handle rotates 360? for ease of operation in virtually any work position.
• Unique clevis pinned alignment shaft allows technician to remove jack to install clutch assembly without obstruction.
• Alignment shafts have flats for open end wrench to aid in clutch indexing and internally threaded for slide hammer removal if needed.
• Capacity: 500 lbs. min: 13″ max: 39″ frame: 36 1/2″ x 22″ ship weight: 138 lbs.
• A highly efficient design that provides the technician with capabilities to remove, install and transport heavy duty truck clutches. this heavy duty unit has a greater capacity than most competitive units and has the added versatility of being able to convert the optional adapters for fly wheels, drive shafts, starter motors, auxiliary cases, differentials, brake drums and camel back springs. 300lb clutch & flywheel handle item : aff-3700

WARRANTY: See Manufacturer for warranty information

PROP 65 WARNING: WARNING: This product can expose you to chemicals including ETHYLENE GLYCOL (INGESTED), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

WEIGHT: 125.0 lbs
DIMENSIONS: L: 25.0 x W: 41.0 x H: 9.0

MANUFACTURER: AMERICAN FORGE & FOUNDRY
UPC: 874015002867
ITEM: AFF-3700
