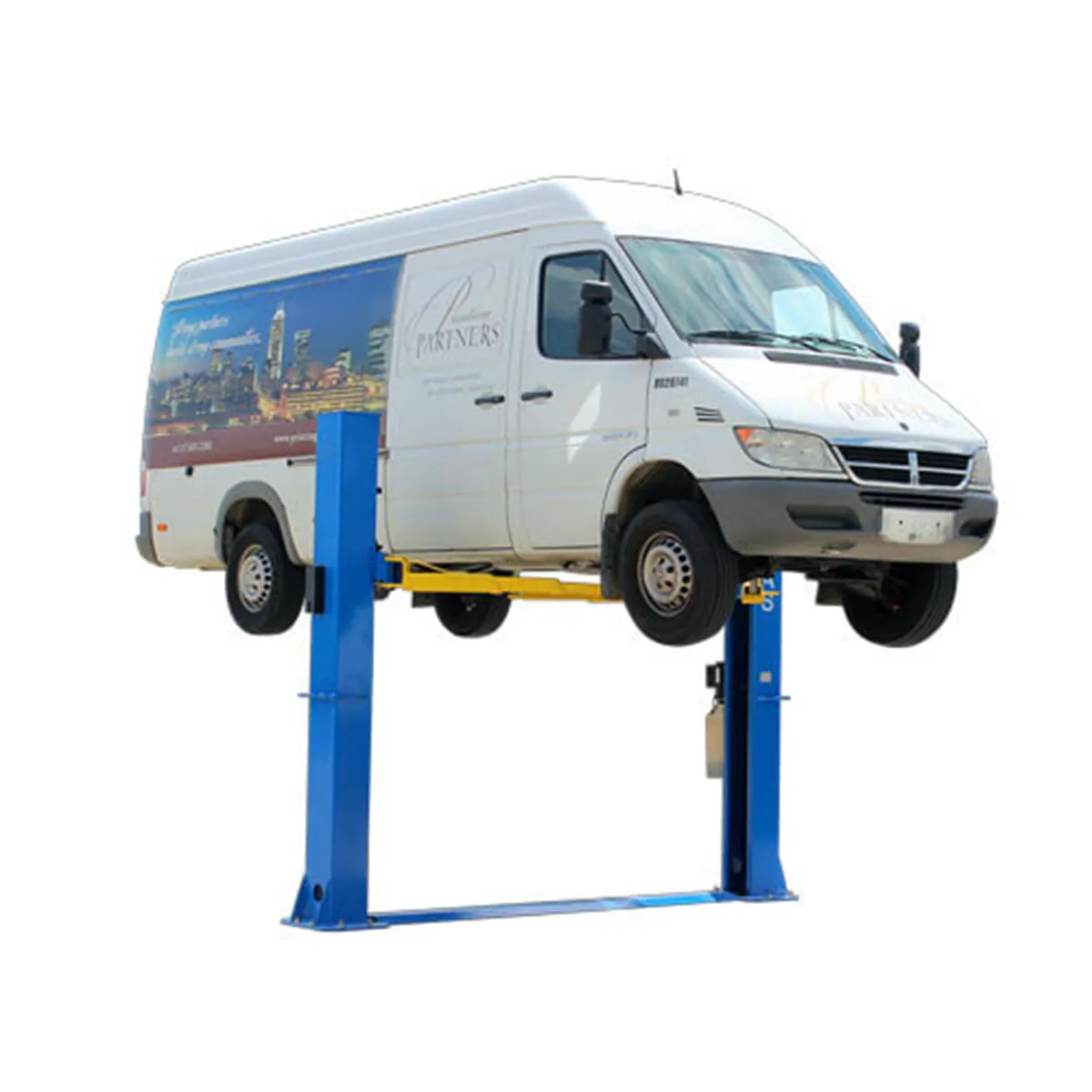

ATLAS AUTOMOTIVE EQUIPMENT BP10000X 10,000 LB BASEPLATE LIFT (WILL CALL)

Atlas Automotive Equipment Bp10000X 10,000 Lb Baseplate Lift (Will Call)

FEATURES:
• 10,000 lb. Capacity Commercial Grade Baseplate, Open-Top Style Lift Overall Height: 111 7/8″ (9′ 3 7/8″) Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously Super-Symmetric Arms Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard Welded Support Gussets Increase Column Strength. Automatic Arm Restraints Powder Coat Finish Free 12 Piece Truck Adapter Set Shipping Weight: 1,640 LBS. 5 yr Structural &hyphen
• 2 yr Hydraulic

WARRANTY: ‐ Parts Only Atlas ATTD-BP10000X Specifications Capacity: 10,000 LB. Overall Height: 111 7/8″ (9′ 3 7/8″) Overall Floor Width: 139 1/8″ (11′ 7 1/8″) Outside Column to Outside Column: 134 1/2″ (11′ 2 1/2″) Maximum Lift Height (Without Adapters): 77 3/8″ Maximum Lift Height (With Adapters): 86 3/8″ Minimum Arm Height: 4″ Inside Column: 112 1/4” (9′ 4 1/4”) Drive Thru: 101 1/4” (8′ 5 1/4”) Column Size: 9 1/2″ x 11″ Base Of Lift: 17 1/2″ x 21 1/2″ Motor/Electrical Requirement: 220 volt single (1) phase.A 30 amp breaker is recommended Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED) Shipping Weight: 1,640 LBS. Adapter Heights: 4 Each 2”, 3”, 6” Arm Hole/Adapter Peg Size: 1.5” Requires a minimum of 4″ of concrete with a 3000 psi. rating The Atlas BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop. Document. Atlas BP10000X Manual

PROP 65 WARNING: WARNING : cancer and reproductive harm – www.P65Warnings.ca.gov

WEIGHT: 1640.0 lbs
DIMENSIONS: L: 115.0 x W: 34.0 x H: 22.0

MANUFACTURER: Atlas Automotive Equipment
MFG PART #: ATTD-BP10000X-NEW
UPC: 810524027304
ITEM: ATEATTD-BP10000X
