Description

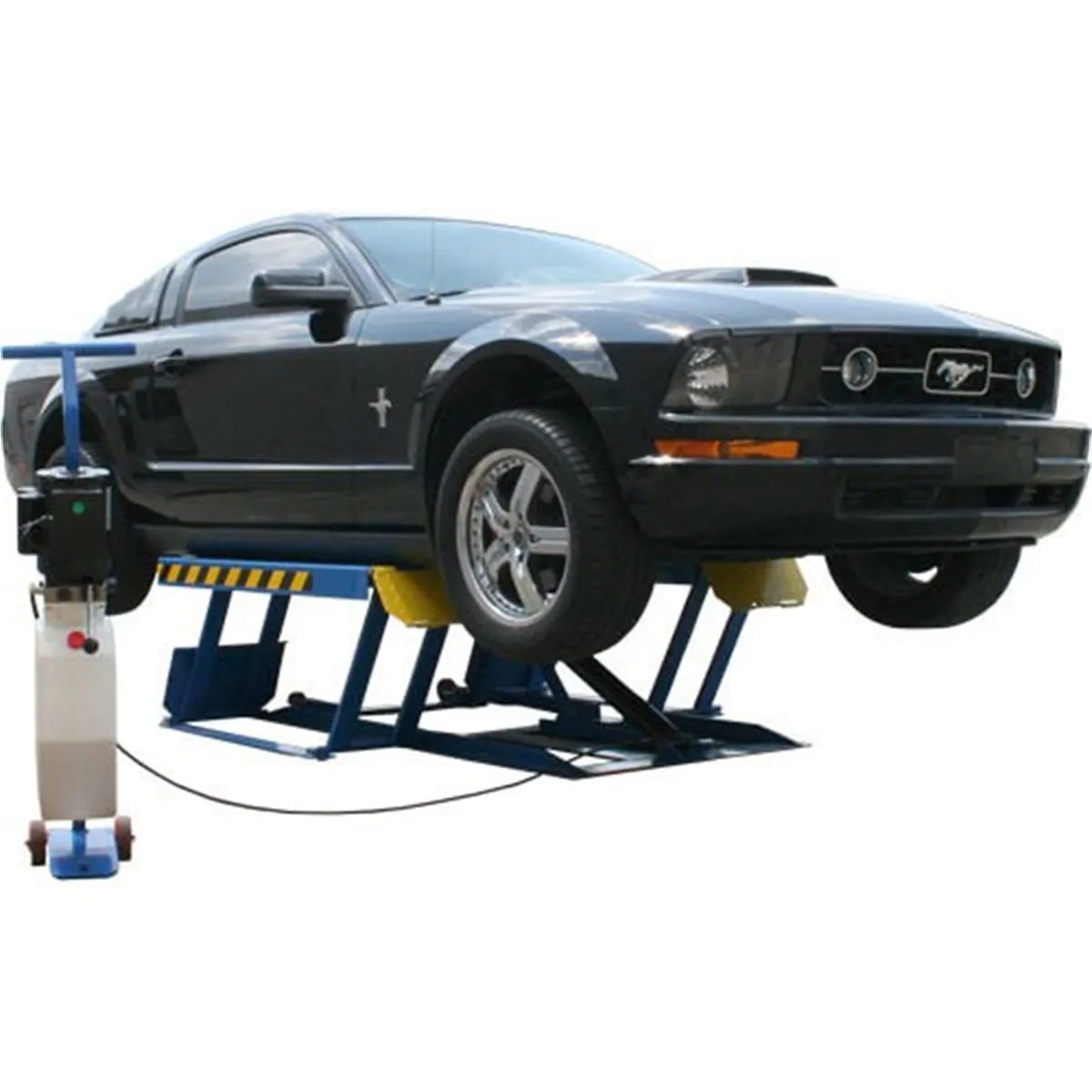

ATLAS AUTOMOTIVE EQUIPMENT LR06 PORTABLE LOW RISE SCISSOR LIFT 6000 LB. CAPACITY (WILL CALL)

Atlas Automotive Equipment Lr06 Portable Low Rise Scissor Lift 6000 Lb. Capacity (Will Call)

FEATURES:
• 6,000 lb. capacity Portable 4″ Low Profile Frame Multi-Position Manual Safety Locks 110volt Electric Operation Shipping Weight: 965 lbs. 2 yr Structural &hyphen
• 1 yr Hydraulic

WARRANTY: ‐ Parts Only Atlas ATTD-LR06 Specifications Capacity: 6,000 lb. Maximum Lifting Height: 24″ (2′) Locking Position Heights: 12 1/4″, 18 1/2″, and 22 1/4″ Overall Pad Length: 53 1/4″ (4′ 5 1/4″) Overall Width: 70″ (5′ 10″) Overall Length: 79 3/4″ (6′ 7 3/4″) Lowered Height: 4″ Motor/Electrical Requirement: 110volt Oil Requirement: 1.5-2 Gallons AW32 or AW46 (NOT INCLUDED) Shipping Weight: 965 lb. The Atlas LR06 portable 6,000 lb. low rise lift is the perfect addition to any garage that needs a quick sure fire method to raise a car to perform wheel service or body work. The LR06 low rise lift comes with rubber pads on the lifting surface. Multiple lock positions and a unique self actuating lock bar allow the operator to perform wheel service at a comfortable working height. Simply drive the car over the Atlas LR06 and position the rubber blocks (if needed) under the correct lifting points of the vehicle. Press the button on the unit and lift the vehicle to the desired work height. Depress the “dump valve lever” on the power unit and the lift lowers slightly to the next lower mechanical lock position. This durable lift is built on a heavy steel frame that provides rock solid support for a lifting base. The low-profile design accommodates most low frame vehicles. Due to the horizontal cylinder configuration, it is important to allow some space (2-6 inches) between the lifting surface of the lift and the vehicle’s lifting points. The Atlas LR06 can also be easily moved inside the garage or to an outside concrete apron in front of a bay. The standard wheel kit and the power unit stand work together to allow the operator to roll the LR06 portable low-rise lift across any concrete surface. Document. Atlas ATTD-LR06 Manual

PROP 65 WARNING: WARNING : cancer and reproductive harm – www.P65Warnings.ca.gov

WEIGHT: 965.0 lbs
DIMENSIONS: L: 90.0 x W: 72.0 x H: 14.0

MANUFACTURER: Atlas Automotive Equipment
MFG PART #: ATTD-LR06
UPC: 810524027205
ITEM: ATEATTD-LR06
