Description

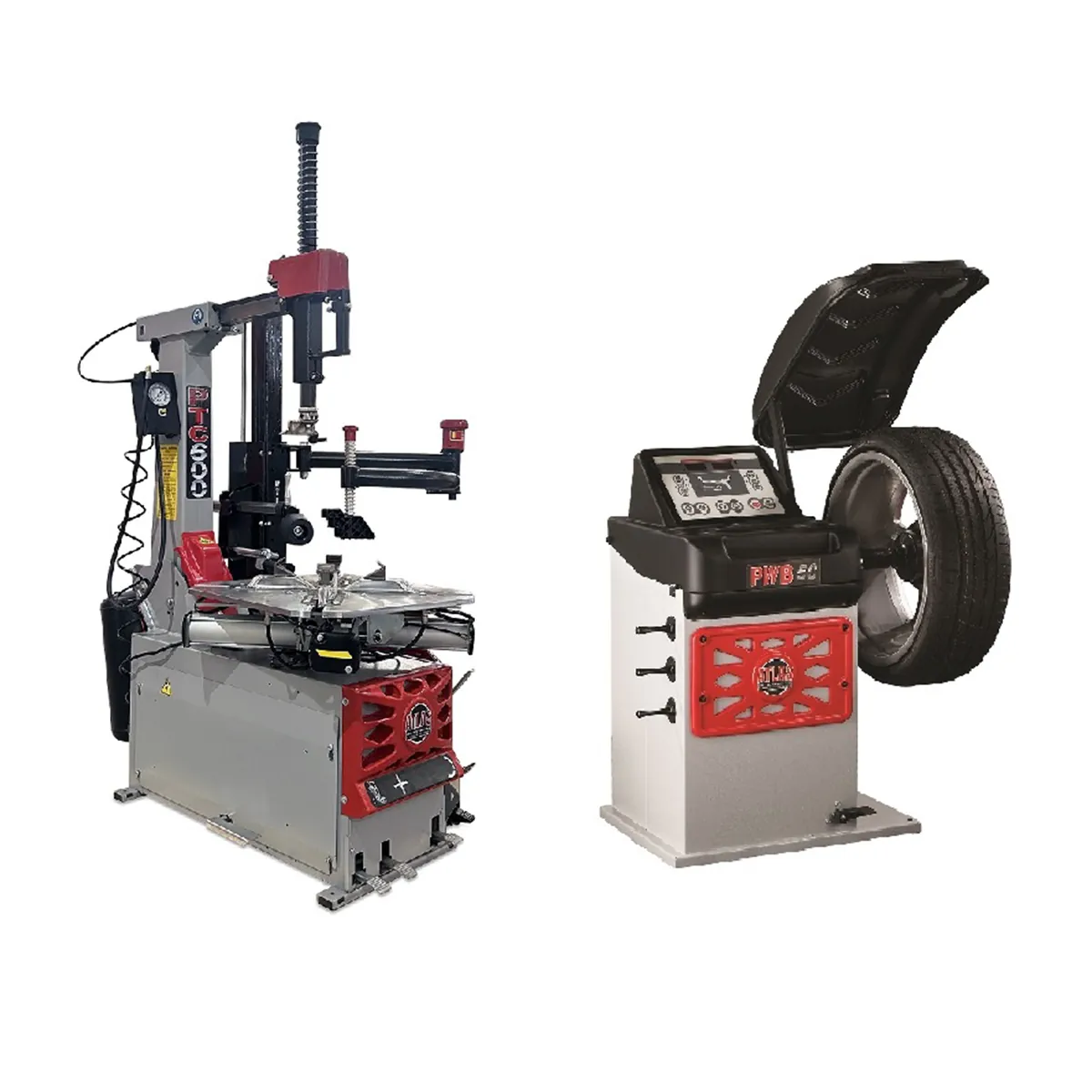

ATLAS AUTOMOTIVE EQUIPMENT PLATINUM PTC600 + PWB50 COMBO PACKAGE

Atlas Automotive Equipment Platinum Ptc600 + Pwb50 Combo Package

FEATURES:
• Platinum PTC600 + PWB50 Combo Package Platinum Tilt-Back/Swing Arm Tire Changer Right Hand Assist Arm Included Air Operated Jaws & Bead Breaker (External Air Supply Required) Electric Turntable (110volt) Metal Mount/Demount Head w/ Replaceable Plastic Inserts Column Mounted Inflator Box w/ Gauge Filter/Regulator/Lubricator Included Built in “Beadblaster” Platinum Computer Controlled Motorized Spin Balancer Automatic & Pedal Controlled Brake Hood w/ Automatic Start/Stop When Lowered/Raised Static & Dynamic Balancing Modes Optimatch, FES (Spilt), OPF (Opposite Position) Functions Special ALU-S & Other ALU Programs Automatic 2D Data Entry NWN (No Wheel Needed) System Self-Diagnosing & Self-Calibrating Display in Grams or Ounces/MM or Inches Replacement Parts & Wear Items Always in Stock 2 Year Parts Only

WARRANTY: on TC and WB External Locking Rim Dimension: 10″-27″ Internal Locking Rim Dimension: 12″-29″ Maximum Tire Diameter: 43″ Maximum Wheel Width (Bead Breaker): 16″ Air Requirement: 120-145 PSI PTC600 Shipping Weight: 795 lbs. Balancing Rim Sizes (Cars & Light Trucks): 10″ – 30″ Balancing Rim Width: 1 1/2″ – 20″ Shaft Size 40mm Max Wheel Weight: 165 lbs. Balancing Speed: 130 rpm Accuracy: 1 gram Power Supply for both: 110volt PWB50 Shipping Weight: 230 lbs. This Part Number “FREIGHT PREPAID” This combo package includes the Atlas® Platinum PTC600 tire changer and the Atlas® Platinum PWB50 wheel balancer. The Atlas® Platinum PTC600 represents the pinnacle of quality in a machine meant for the “Professional Tire Dealer” or “Large Car Dealership.” The PTC600 is an Italian engineered Tilt-Back Tire Changer that comes standard with a Right-Hand Bead Pressing and Bead Rolling Assist Arm to make changing the most challenging tires a breeze. The Tilt-Back design means the PTC600 has a pneumatic locking mount/demount head, dramatically lowering the risk of the head moving during use and possibly damaging rims. The PTC600 boasts a 29-inch clamping capability, high torque 110V electric turntable, anodized aluminum bead breaker cylinder, and integrated bead blast system. The Atlas PTC600 requires some assembly after purchase. The Atlas® Platinum PWB50 is an electronic wheel balancer with an easy to read LED display and that offers Automatic 2D Data Entry via a single data entry gauge. Whilst there are a multitude of ALU weight placement configurations, the weight placement arm actually enables the operator to choose the most convenient position for the weights, and the machine will guide the operator back to that exact position after the spin cycle, ensuring accurate dynamic adhesive weight application. The Fast & Easy Split function (FES) makes hiding adhesive weights behind the spokes a breeze and the Opposite Weight Function (OWF), allows an operator to change the weight application position from 12 o’clock to 6 o’clock for convenient access when applying adhesive weights. Optimization of tire and wheel unbalance (match mounting) is possible with the PWB50 via OPTIMATCH software and makes balancing even the most difficult assemblies easy and efficient. The Atlas® Platinum range of wheel service equipment incorporates the highest quality Italian designed components and engineering to assure it is the best value available at its price point.

PROP 65 WARNING: WARNING : cancer and reproductive harm – www.P65Warnings.ca.gov

WEIGHT: 1000.0 lbs
DIMENSIONS: L: 108.0 x W: 87.0 x H: 69.0

MANUFACTURER: Atlas Automotive Equipment
MFG PART #: AP-TCWB-COMBO8
ITEM: ATEAP-TCWB-COMBO8-FPD
