Description

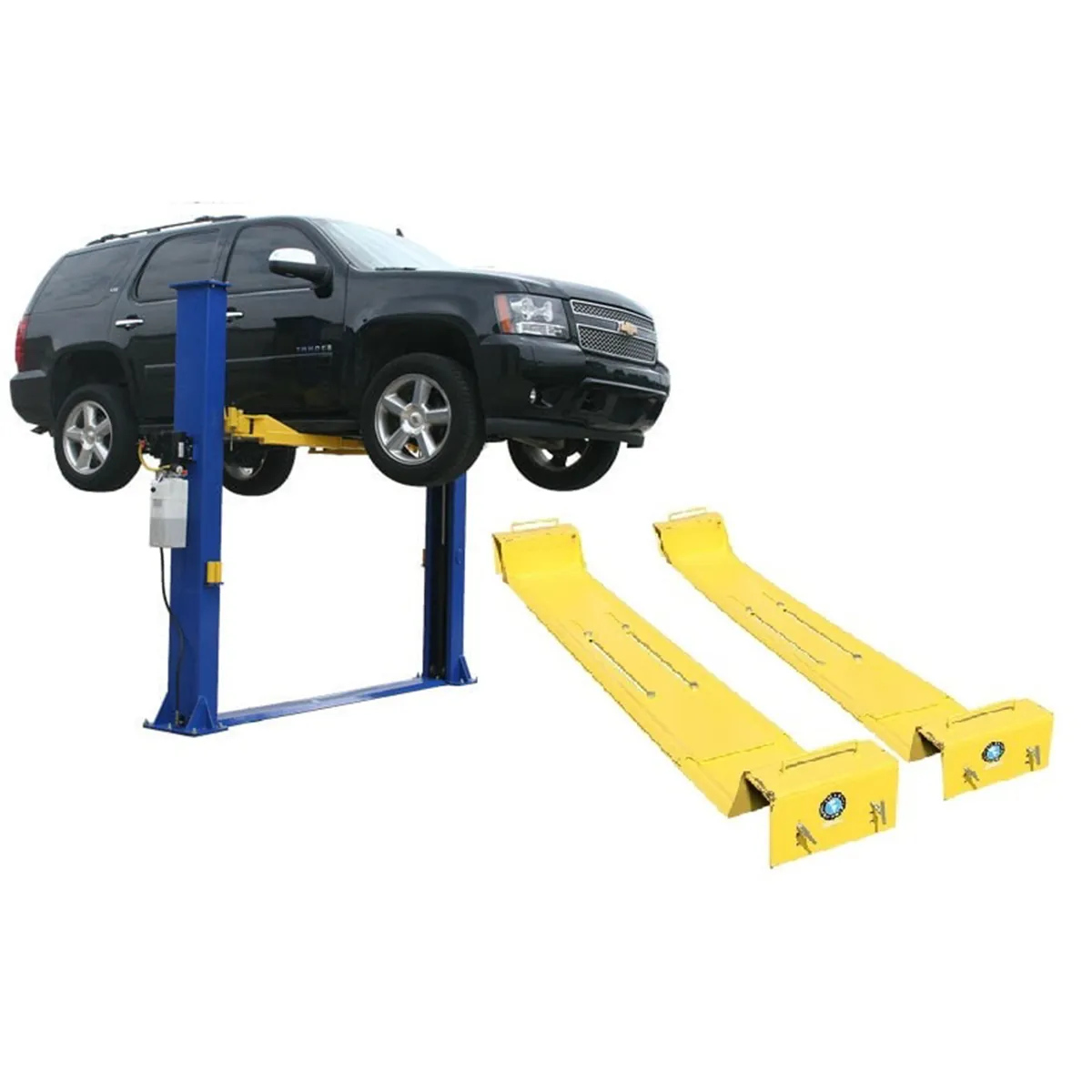

ATLAS EQUIPMENT 9KBPX LIFT + LAWNMOWER ADAPTER COMBO

Atlas Equipment 9Kbpx Lift + Lawnmower Adapter Combo

FEATURES:
• Combo includes 9KBPX 9,000 lb. capacity lift and Lawn Mower Adapter Baseplate, Open-Top Style Lift Designed For Low Ceiling Clearance &hyphen
• 9? 3 �&rdquo
• Columns Symmetric Arms Dual Hydraulic Chain-Drive Cylinders Secondary Lock System (SLS) Free 8 Piece Truck Adapter Set Automatic Arm Restraints Dual Point Lock Release Mounting Hardware Included This part number FREIGHT PREPAID The Atlas&reg
• 9KBPX is an economically designed baseplate two-post lift great for low ceiling garages. The total column height of 111 �&rdquo
• (9 feet 3 � inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches. The Atlas&reg
• 9KBPX &ldquo
• chain over roller&rdquo
• lift features a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain. The reliable dual chain-drive cylinders, symmetric arms, and automatic arm restraints make this the perfect choice for &ldquo
• Mr. Homeowner&rdquo
• or small commercial shop looking to service cars, SUV�s and light duty trucks (not recommended to lift Diesel Dually or other large truck This combo includes the Atlas&reg
• Lawn Mower Adapter or LMA. The LMA allows the user to raise lawn tractors, ATV’s, UTV’s, golf carts, and other small vechicles. NOTE: the capacity of the adapter when used on the 9KBPX is less then 9,000 lbs. If you have questions about the LMA and it’s capabilities please contact a sales rep. Atlas&reg
• XH-9KBPX Specifications Capacity 9,000 LB. Overall Height 111 1/2″ (9� 3 1/2″) Overall Floor Width 134 1/2″ (11� 2 1/2″) Outside Column to Outside Column 124 7/8″ (10� 4 7/8″) Maximum Lift Height (Without Adapters) 74 1/2″ Maximum Lift Height (With Adapters) 81″ Minimum Arm Height 4″ Inside Column 110&rdquo
• (9� 2&rdquo
• ) Drive Thru 101&rdquo
• (8� 5&rdquo
• ) Column Size 7 1/4″ x 11″ Column Thickness of Steel 5mm Base Of Lift 14 1/4″ x 18 1/4″ Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended) Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED) Shipping Weight 1,400 LBS. Adapter Heights 4 Each 1.5&rdquo
• , 5&rdquo
• Arm Hole/Adapter Peg Size 1.5&rdquo
• Requires a minimum of 4″ of concrete with a 3000 psi. rating The Atlas&reg
• LMA Specifications (VARY BY LIFT AND WHEELBASE): Capacity: Up to 5,000 lbs Adjusts in Width: 8′ to 11′ Wheel Base: 32″ to 90″ Wheel Well Width: 12″ Thickness of Steel: 3/16″ Shipping Weight: 600 lbs. Will fit lift arms up to 5 1/2″ wide

WARRANTY: 2 yr warranty on material and workmanship

PROP 65 WARNING: WARNING : cancer and reproductive harm – www.P65Warnings.ca.gov

WEIGHT: 2000.0 lbs
DIMENSIONS: L: 114.0 x W: 72.0 x H: 22.0

MANUFACTURER: Atlas Automotive Equipment
MFG PART #: XH-9KBPX-COMBO-FPD
UPC: 810524029834
ITEM: ATEXH-9KBPX-COMBO-FPD
