Description

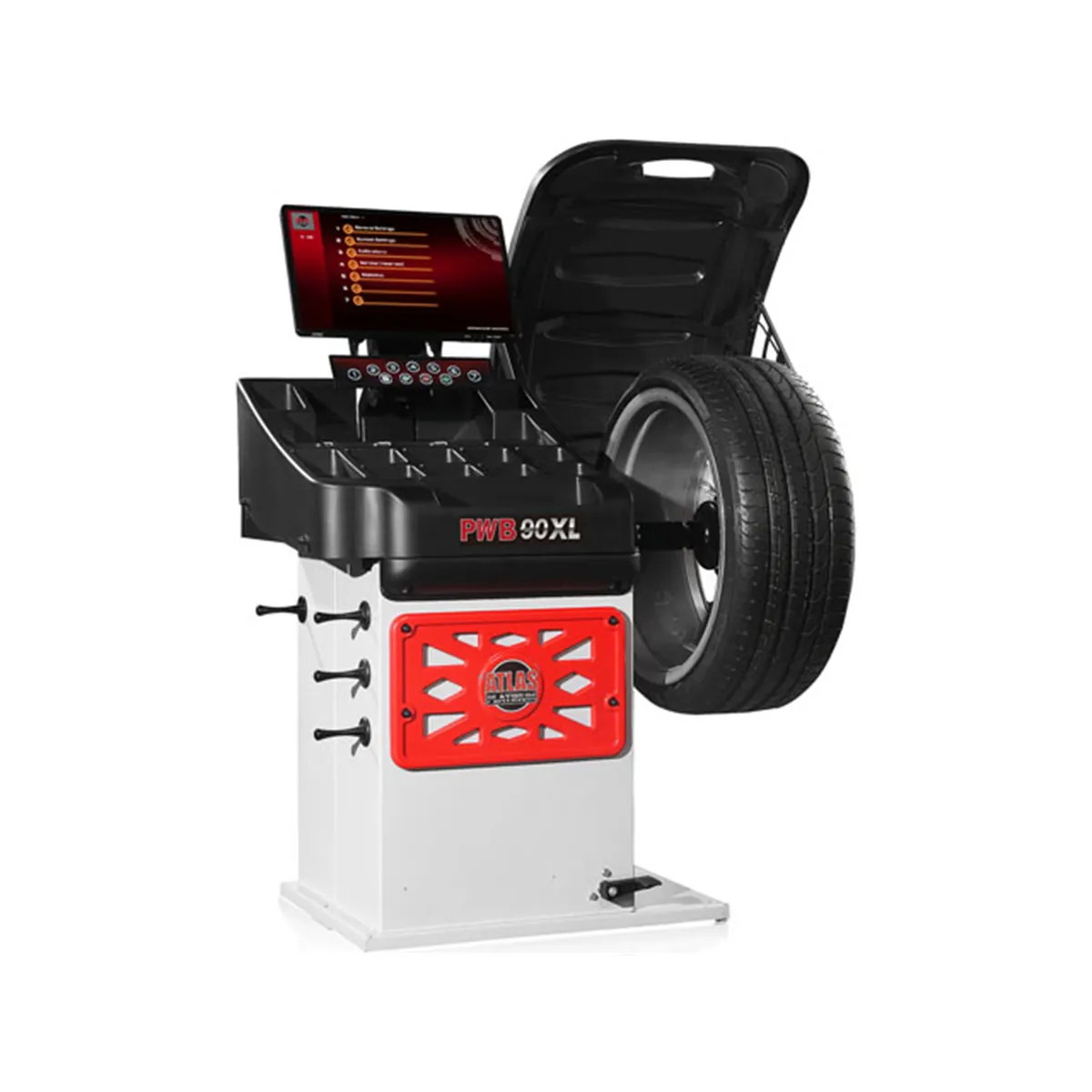

ATLAS EQUIPMENT PLATINUM PWB90XL 3D VIDEO WHEEL BALANCER WITH LASER LINE

Atlas Equipment Platinum Pwb90Xl 3D Video Wheel Balancer With Laser Line

FEATURES:
• Platinum 3D Video Motorized Spin Balancer Italian Engineering and Components High-Resolution Video Monitor Display Super Automatic 3D Data Entry (touchless sonar to measure rim width) Laser Line to guide weight placement LED light illuminates wheel interior Static and dynamic balancing modes. Optimatch, FES (Split), OPF (Opposite Position) Functions Special ALU-S and other ALU Programs NWN (no wheel need) System Self-Diagnosing and Self-calibrating USB hub for firmware update through PC/Notebook Exceptional stability in reading the unbalance between planes. Display in grams or ounces, and in mm or inches. No anchor-down installation needed Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers Replacement Parts & Wear Items Always in Stock 2 Year Parts Only

WARRANTY: Atlas Platinum PWB90XL Specifications Max Tire Diameter: 43″ Rim Sizes (Cars And Light Trucks): 10″-30″ Rim Width: 1 1/2″-20″ Shaft Size: 40mm Max. Wheel Weight: 165 lbs. Balancing Speed: 130 rpm Data Entry: Super Automatic 3D Measurements: Standard Or Metric Accuracy: 1 gram Weight Position Resolution: 1.4 Degrees Self Calibration: Yes Cycle Time: 7 seconds Power Supply: 110volt Shipping Weight: 290 lbs. The Atlas Platinum PWB90XL features Super Automatic 3D Data Entry via a single data entry gauge for offset and diameter, and touchless sonar for rim width (no old-fashioned measuring arm). Using the weight placement arm, the user can choose the most convenient location to put the weights, and a Laser Line guides the operator back to the exact location after the spin cycle, eliminating any possibility for human error and ensuring first time zero/zero results. The Fast & Easy Split function (FES) makes hiding adhesive weights behind the spokes a breeze and the Opposite Weight Function (OWF), allows the operator to change the weight application position from 12 o’clock to 6 o’clock for convenient access when applying adhesive weights. Optimization of tire and wheel unbalance (match mounting) is possible with the PWB90XL via OPTIMATCH software and makes balancing even the most difficult assemblies easy and efficient. Make no mistake, the PWB90XL is a real top of the line wheel balancer, competing with those big name brands seen as the benchmark for premium quality. This model guarantees speed, accuracy, and a long life by combining Italian engineering and components with the Factory Direct Value that Atlas is known for around the World. Document. Atlas Platinum PWB90XL Manual

PROP 65 WARNING: WARNING : cancer and reproductive harm – www.P65Warnings.ca.gov

WEIGHT: 290.0 lbs
DIMENSIONS: L: 48.0 x W: 32.0 x H: 24.0

MANUFACTURER: Atlas Automotive Equipment
MFG PART #: AP-PWB90XL
UPC: 810524028660
ITEM: ATEAP-PWB90XL-FPD
