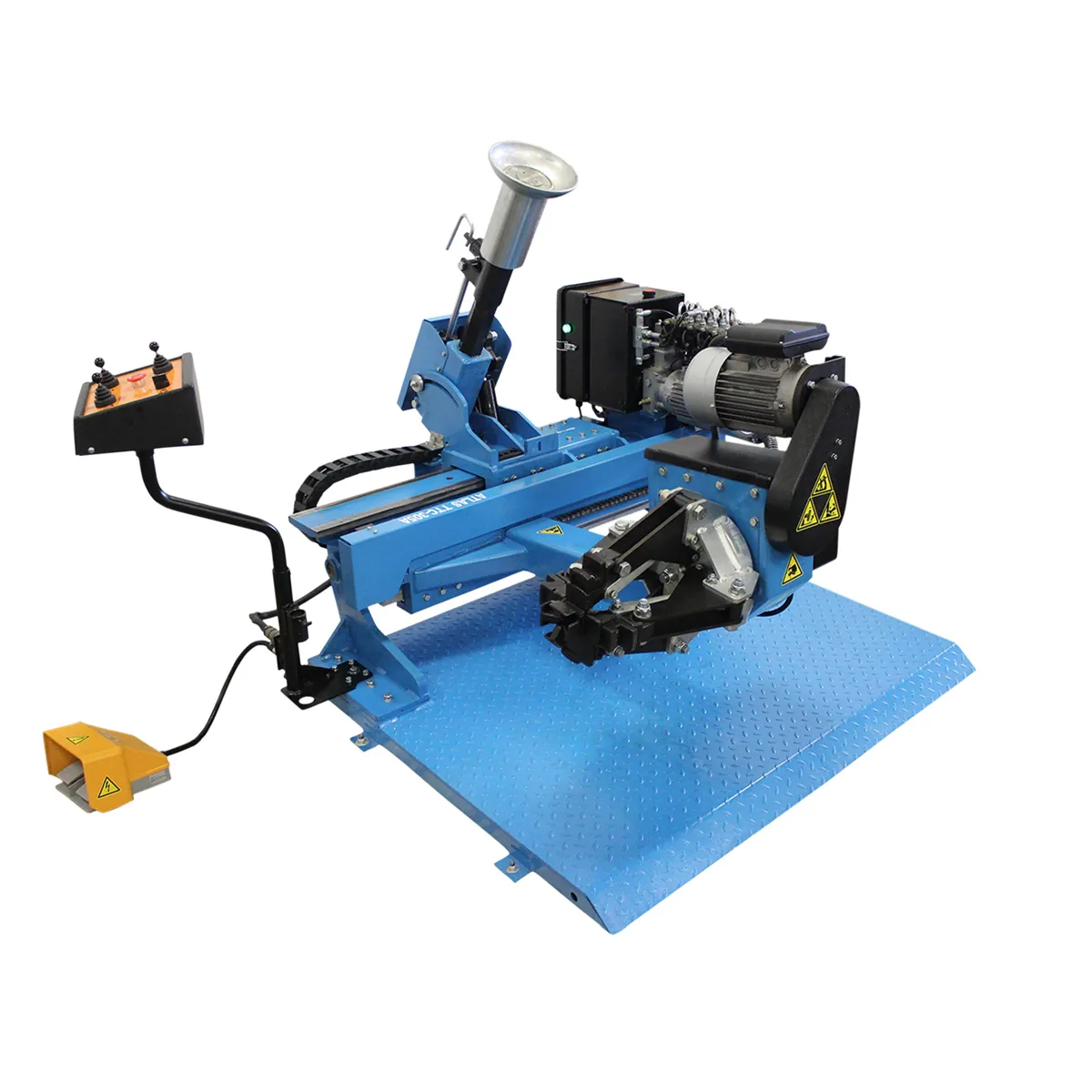

ATLAS EQUIPMENT TTC305A AUTOMATED TRUCK TIRE CHANGER

Atlas Equipment Ttc305A Automated Truck Tire Changer

FEATURES:
• Fully Automatic Truck Tire Changer Handles rims from 8″ to 26″ and tire diameters in excess of 55″ Accommodates tires with a max width of up to 30 1/2″ Automatic movement and positioning of Bead Tool, Carriage, & Chuck Arm Bead Breaker Interchangeable Mount/Demount and Roller Heads Electric/Hydraulic Self-Centering Four Jaw Chuck 5 different rim locking positions Mounted Control Unit w/ additional Foot Pedal Controls Heavy Duty Tire Tool Included Rim Clamps for Steel and Alloy Wheels Included Alloy Rim Adapter Set w/ Plastic Inserts Included 1 Year Parts Only

WARRANTY: Atlas TTC305A Specifications Rim Clamping Range: 13″ – 26″ Minimum Clamping Size W/ Alloy Adapters: 8″ Max Wheel Weight: 838 lbs. Max Tire Diameter: 55″ Max Tire Width: 30 1/2″ (2′ 6 1/2″) Clamping Power: 6,600 lbs. Operating Pressure: 0-1885 PSI Acoustic Pressure: Bead Breaker Force: 3990 lbs. Tool Arm Positioning: Automatic Tool Head Positioning: Automatic Construction: Single Piece Frame w/ Solid Floor Plate Hydraulic Motor Power: 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required Chuck Motor Power: 3 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required Shipping Weight: 1,490 lb. The Heavy Duty Atlas TTC305A automatic truck tire changer is designed and engineered to handle rim bore sizes from 8 inches to 26 inches and tire diameters in excess of 55 inches. The fully automatic Atlas TTC305A truck tire changer can easily accommodate tires with a maximum width of 30 1/2 inches. This automatic truck tire changer is the result of a joint venture between a very prestigious Italian wheel service

PROP 65 WARNING: WARNING : cancer and reproductive harm – www.P65Warnings.ca.gov

WEIGHT: 1500.0 lbs
DIMENSIONS: L: 63.0 x W: 61.0 x H: 41.0

MANUFACTURER: Atlas Automotive Equipment
MFG PART #: ATTC305A
UPC: 810524025843
ITEM: ATEATTC305A-FPD
