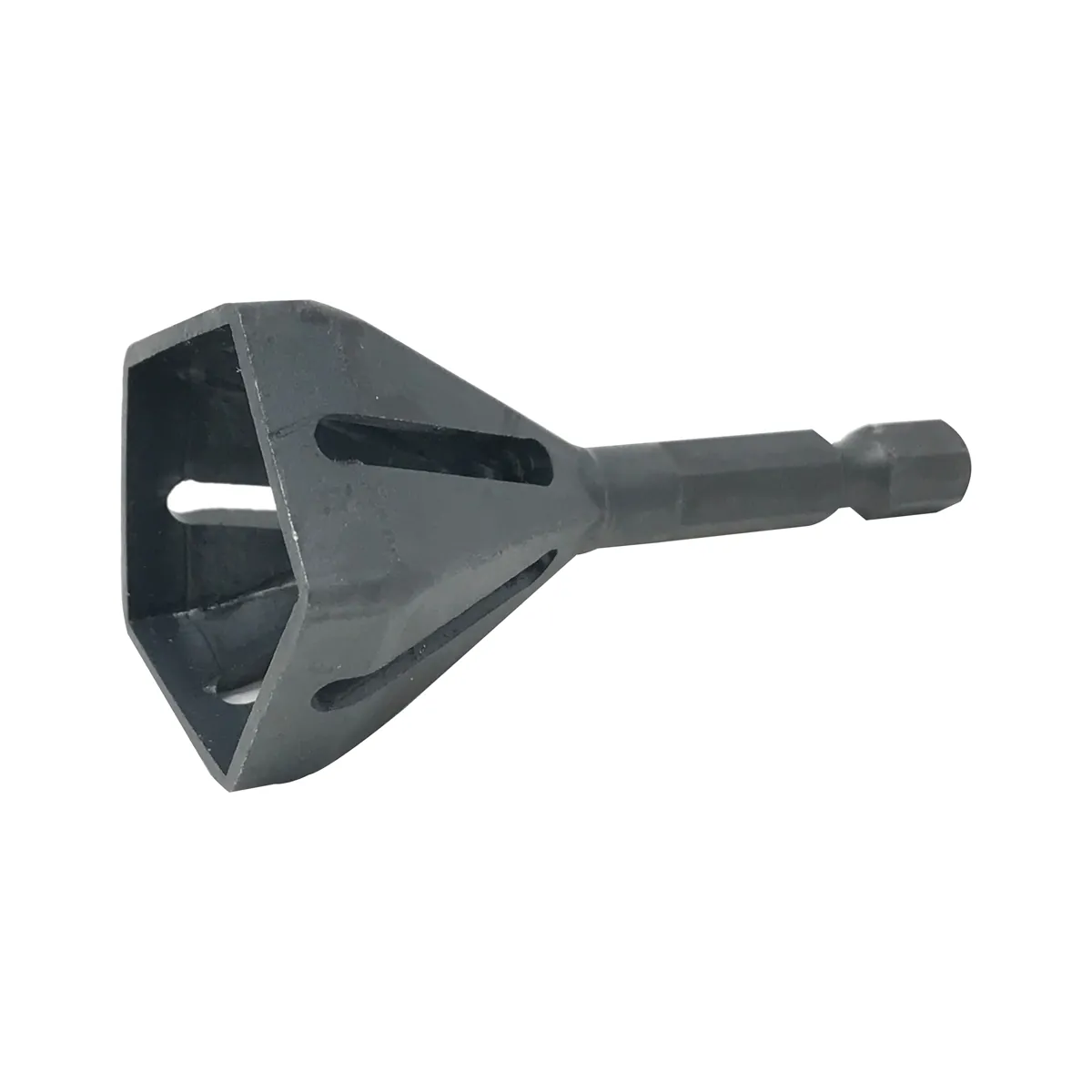

E-Z CHAMFER TOOL

E-Z Chamfer Tool

FEATURES:
• E-z chamfer is perfect for starting a nut on a bolt or threaded bar, a button die or die nut on rod and a leading edge on timber dowel.
• It efficiently removes burrs and ridges from bolts, pipe, threaded rod, bar and dowels.
• Threads and burrs are sheared off creating the perfect chamfer for starting a nut or threading die.
• M2-hss – high speed steel is a tungsten-molybdenum high speed steel with a well balanced composition suitable for a wide variety of applications.
• E-z chamfer is perfect for starting a nut on a bolt or threaded bar, a button die or die nut on rod and a leading edge on timber dowel.
• It efficiently removes burrs and ridges from bolts, pipe, threaded rod, bar and dowels.
• Threads and burrs are sheared off creating the perfect chamfer for starting a nut or threading die.
• M2-hss – high speed steel is a tungsten-molybdenum high speed steel with a well balanced composition suitable for a wide variety of applications.
• It is suitable for use on metals including:
• Mild steel – u.s. grade 2 – metric grade 4.8
• Hard steel – u.s. grade 5 – metric grade 8.8
• Very hard steel – u.s. grade 8 – metric grade 10.9
• Stainless steel – 300 series
• Super hard steel – u.s. grade astm-a574 – metric grade 12.9
• For best results, use a slow drill speed with medium pressure on most materials. harder materials will require a higher feed pressure.
• Use at low speed – maximum 800rpm.
• Impact drivers will reduce tool life
• E-z chamfer (m2-hss) recommended rpm according to size:
• 8-12mm (800rpm)
• 18-22mm (400rpm)
• 12-18mm (600rpm) e-z chamfer tool item : cta-3838

WARRANTY: See Manufacturer for warranty information

WEIGHT: 0.15 lbs
DIMENSIONS: L: 7.0 x W: 3.25 x H: 1.5

MANUFACTURER: CTA
UPC: 53001038381
ITEM: CTA-3838
