Description

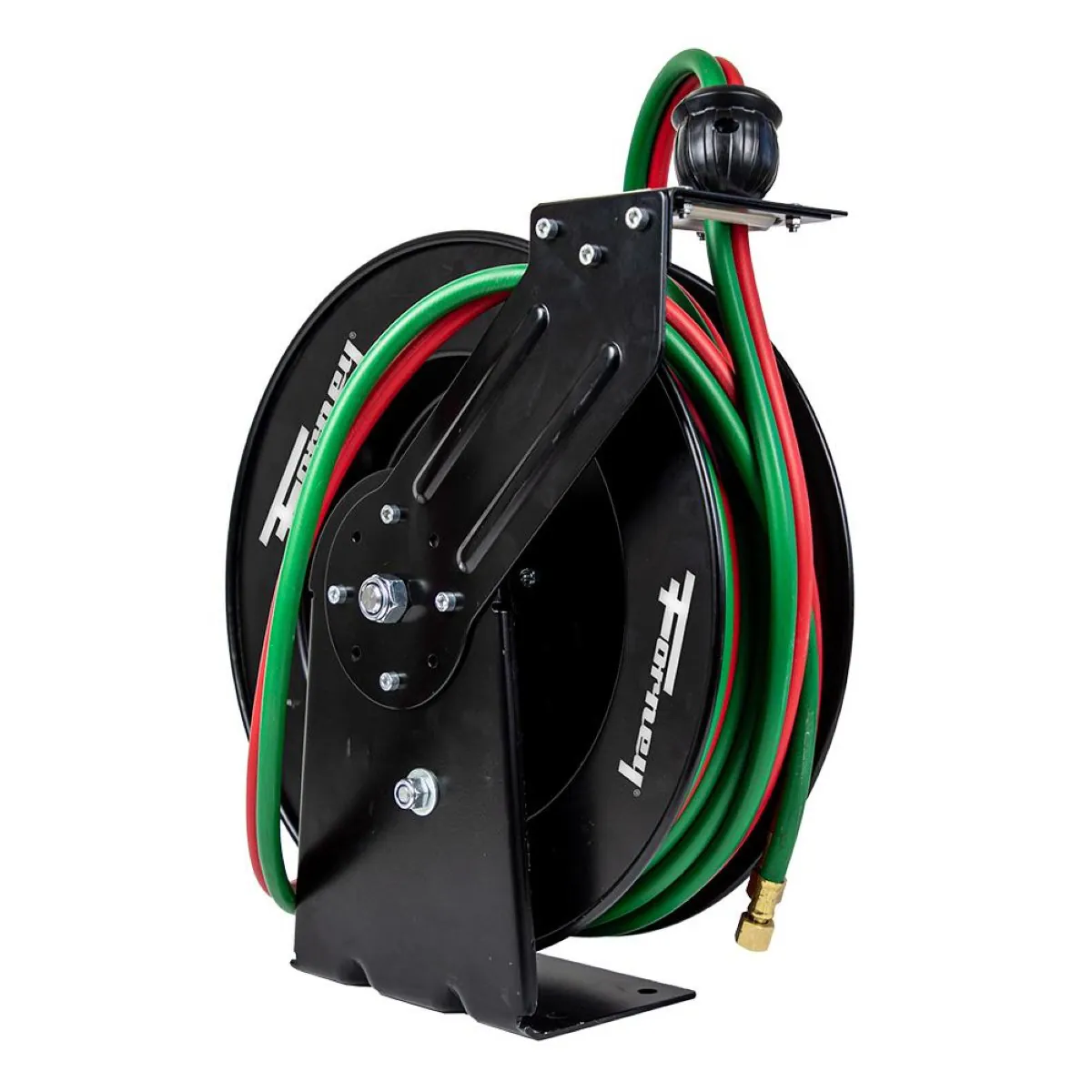

FORNEY INDUSTRIES OXYGEN ACETYLENE TWIN WELDING HOSE REEL 50-FT X 1/4-INCH

Forney Industries Oxygen Acetylene Twin Welding Hose Reel 50-Ft X 1/4-Inch

FEATURES:
• Reel Construction: Heavy-duty, powder-coated marine-grade steel with stiffening ribs and reinforced flanged edges beaded spool edges protect hose and operator Swivel Design: Full-flow drop-forged brass swivel joint and body dual brass swivel inlets with machined grooves for proper oxygen/acetylene identification Ratchet System: Multi-position ratchet system, offering versatility and control. Automatic spring-rewind (8,000+ tested cycles) retracts hoses neatly without tangling or kinks integrated locking system holds hose at desired length Guard Arm & Hose Stopper: Adjustable for user convenience Hose Rollers: Four non-snag rollers minimize hose abrasion Dual Hose Material: Premium T-Grade rubber with neoprene coating lays flat, resistant to oil, water, heat, weather, and abrasion suitable for all gases Dual Hose Length: 50 ft (15.24 m) Dual Hose I.D.: 1/4 in. (6.35 mm) Dual Hose Fittings & Function: 9/16 in. (14.29 mm) NPT-18 couplings (Oxygen: Green / Standard-thread Acetylene: Red / Reverse-thread) Lead-In Hose: 10 ft (3.05 m) included Hose Pressure: 300 PSI working 900 PSI burst Temperature Range: -40&deg
• F to 140&deg
• F (-40&deg
• C to 60&deg
• C) Reel Guide Arm: Steel single arm, angle-adjustable for multiple pull directions Mounting Base: Wall, floor, ceiling, work trucks, or the Forney Dual-Cylinder Cabinet Cart

WARRANTY: 1 Year The Forney Oxygen Acetylene Twin Welding Hose Reel is built for professional performance, long-lasting durability, and safe hose management in demanding work environments. Its heavy-duty, powder-coated marine-grade steel frame features reinforced flanged edges, stiffening ribs, and beaded spool edges to prevent hose damage and improve operator safety. A full-flow, drop-forged brass swivel joint and body deliver reliable gas flow, while dual brass swivel inlets�permanently marked with machined grooves for correct gas-side installation�ensure proper connection and durability.The multi-position ratchet system works with an automatic spring-rewind mechanism, tested for more than 8,000 cycles, retracting hoses neatly without tangling or kinks. The integrated locking system keeps the hose at your preferred length, while an adjustable guard arm, hose stopper, and four non-snag rollers reduce wear and maintain smooth operation. Supplied with 50 ft. of premium T-Grade twin hose, this reel handles all gases, resists oil, water, abrasion, weather, and heat, and performs in extreme temperatures from -40°F to 140°F (-40°C to 60°C). Designed to withstand up to 300 PSI working pressure (900 PSI burst), the reel mounts securely to walls, floors, ceilings, work trucks, or paired with the Forney Dual-Cylinder Cabinet Cart, keeping your workspace both safe and efficient.T-Grade hose is manufactured for use with all common fuel gases, including acetylene, propane, natural gas, and MAPP®. Unlike R-Grade hoses, which are rated for acetylene only, T-Grade hoses are built with tougher rubber compounds that resist oil, weathering, heat, abrasion, and chemicals. This added durability and versatility ensures a longer service life and safer performance across diverse gas applications�making T-Grade the professional choice for both shop and field environments.

WEIGHT: 34.0 lbs
DIMENSIONS: L: 17.3 x W: 18.9 x H: 9.9

MANUFACTURER: Forney Industries
MFG PART #: 86169
UPC: 32277861695
ITEM: FOR86169
