Description

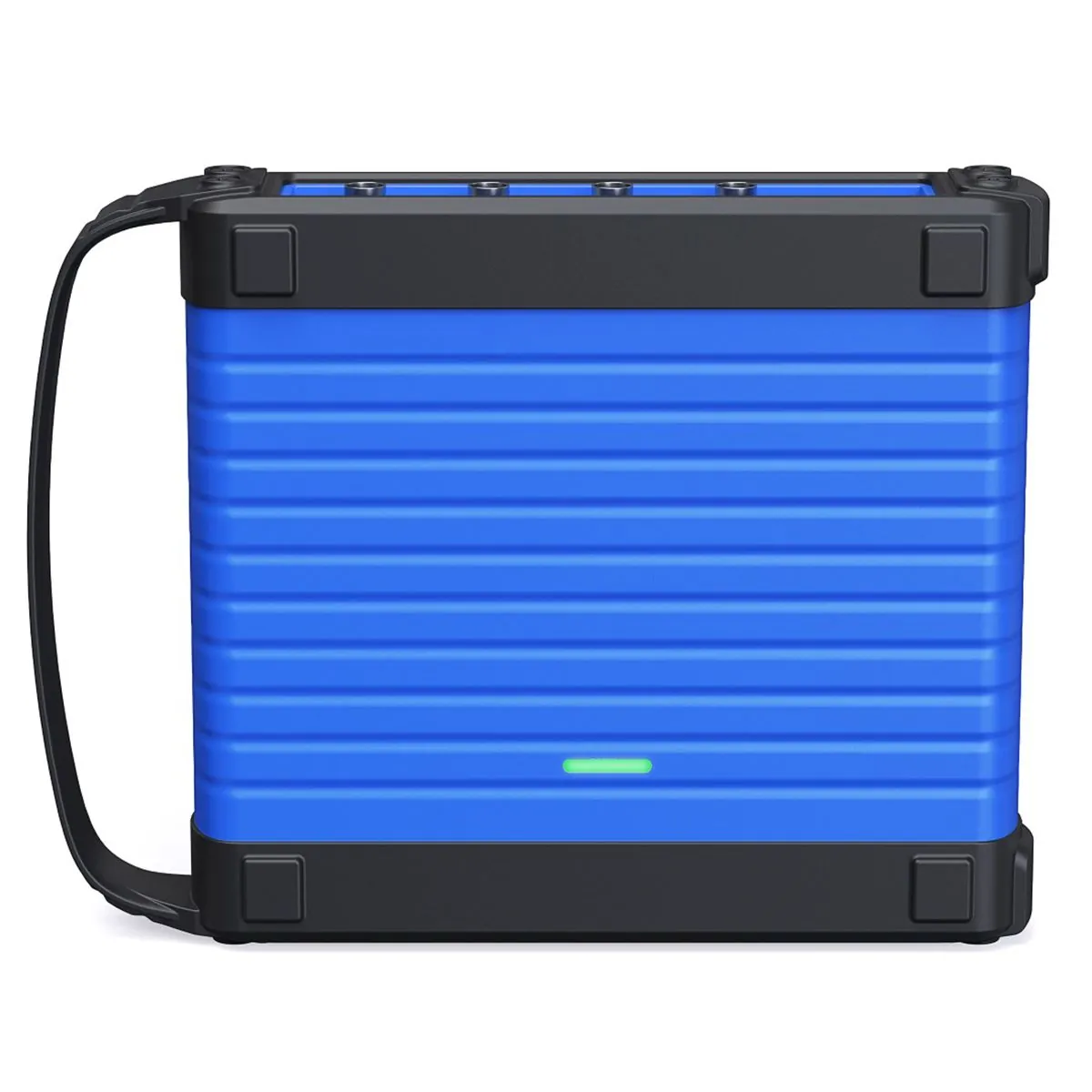

TOPDON PHOENIX SCOPE – 4 CHANNEL OSCILISCOPE WITH ACCESSORIES WORKS W/PHOENIX TOOLS

Topdon Phoenix Scope – 4 Channel Osciliscope With Accessories Works W/Phoenix Tools

FEATURES:
• 23 Types of Automatic MeasurementsDisplayed in one screen and clear at a glance, this feature supports one-tap selection and clearing, eliminating the tediousness of flipping pages and searching, making automatic measurements useful and convenient.Powerful Trigger Function: This feature supports edge, pulse width, and other triggers. Simple and intuitive setup with quick trigger source switching makes the most difficult parts of using the scope extremely easy. High Memory DepthWith a memory depth of up to 50M combined with zoom technology, the Phoenix Scope allows both global and detail to be fully displayed. The upper area can be browsed globally, and the lower area can be searched for details making debugging more than twice as fast. Special Fast Storage FunctionCompared with ordinary scopes which require 3 to 5 steps, the Phoenix Scope can save waveforms with just one tap, reducing save time by more than 70%. Convenient Cursor OperationYou can open horizontal and vertical cursors separately with one tap. Each cursor can be dragged independently. Cursor tracking is achieved directly through a simple highlight tap, increasing overall efficiency by more than 80%. Soft Keyboard InputWhen inputting names and characters, ordinary scopes can only use the knob to select characters one by one. The Phoenix Scope supports soft keyboard input, which improves efficiency by more than 90%. Customizable and Loadable System SettingsVarious preferred system settings are available and can be saved as configuration files. This allows you to load configuration files directly to view them according to your preferences without having to set them repeatedly. Waveform Recording and PlaybackThe waveform can be recorded and saved in a specified format, which can be directly recalled later and displayed as the reference waveform of the corresponding channel. Supports Mathematical Operations on WaveformsThis feature supports addition, subtraction, multiplication, and division calculations of two-channel waveforms in addition to Fast Fourier Transform. Supports a Variety of Automotive TestsThis feature supports circuit tests, sensor tests, actuator tests, ignition tests, communication tests, combination tests, etc. Various parameters and specific connection methods are preset for each kind of test. Compatible with Phoenix Max, Phoenix Smart, Phoenix Elite, Phoenix Lite 2, Phoenix Plus Phoenix Scope allows technicians to quickly diagnose issues with automotive electronics and wiring. It captures circuit signals swiftly and displays signal waveforms at a slower speed for simultaneous observation and analysis. Furthermore, it can record tested signal waveforms and replay them for further observation and fault analysis.

WARRANTY: 1 yr warranty on material and workmanship

PROP 65 WARNING: WARNING : cancer and reproductive harm – www.P65Warnings.ca.gov

WEIGHT: 5.0 lbs
DIMENSIONS: L: 13.3 x W: 13.0 x H: 6.0

MANUFACTURER: Topdon
MFG PART #: TD52110138
UPC: 850028162019
ITEM: TOPPXSCOPE
